Description
Maximum Power (Watts): 555 watts
(Vmp): 42.11 volts operating voltage
(Imp): 13.18 amps operating current
(Voc):50.02 volts open circuit voltage
(Isc): 14.07 amps
Number of Cells (pcs): 6*24 = 144
Front Glass Thickness (mm): 3.2 mm
Temperature Coefficients of Isc (%) °C: -0.048
Temperature Coefficients of Voc (%) °C: -0.29
Temperature Coefficients of Pm (%) °C: -0.37
Temperature Range: -40°C to +85°C
Tolerance Wattage: 0-3 watts
Surface Maximum Load Capacity: 6000Pa snow and 3600Pa wind
Allowable Hail Load: 45mm at 30.7m/s
Bypass Diode Rating (A): 10
Cell Efficiency (%): 22%
Module Efficiency (%): 21.5%
Warranty: 91.2% of 12 years, 80.6% of 25 years
Weight Per Panel (lbs): 60 lbs

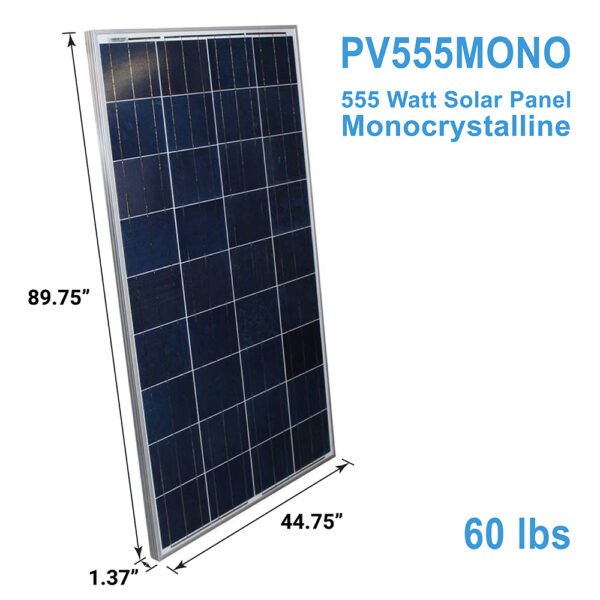

Dimensions (inches): 89.75 x 44.75 x 1.37
