POWEROAD 12V 100Ah BCI Group 31 LiFePO4 Bluetooth Self-Heating Battery
Din H8 12V 150Ah Lithium-ion Phosphate Bluetooth Battery
●100% Usable Energy: 100% Depth of Discharge, Fully Utilize Each Charges.
●Din Standard: Din H8 standard enclosure, Under-the-Seat design.
●Safety First: Safest LiFePO4 Technology Armed with BMS.
●Bluetooth Connection: Monitor With Mobile Devices.
●Optional Pre-Heat Charging: Warm Up Before Taking Charge In Wintertime.
●10 Years Run Time: 4000 Cycle Life Equivalent To 10-15 Years Service Life.
Description

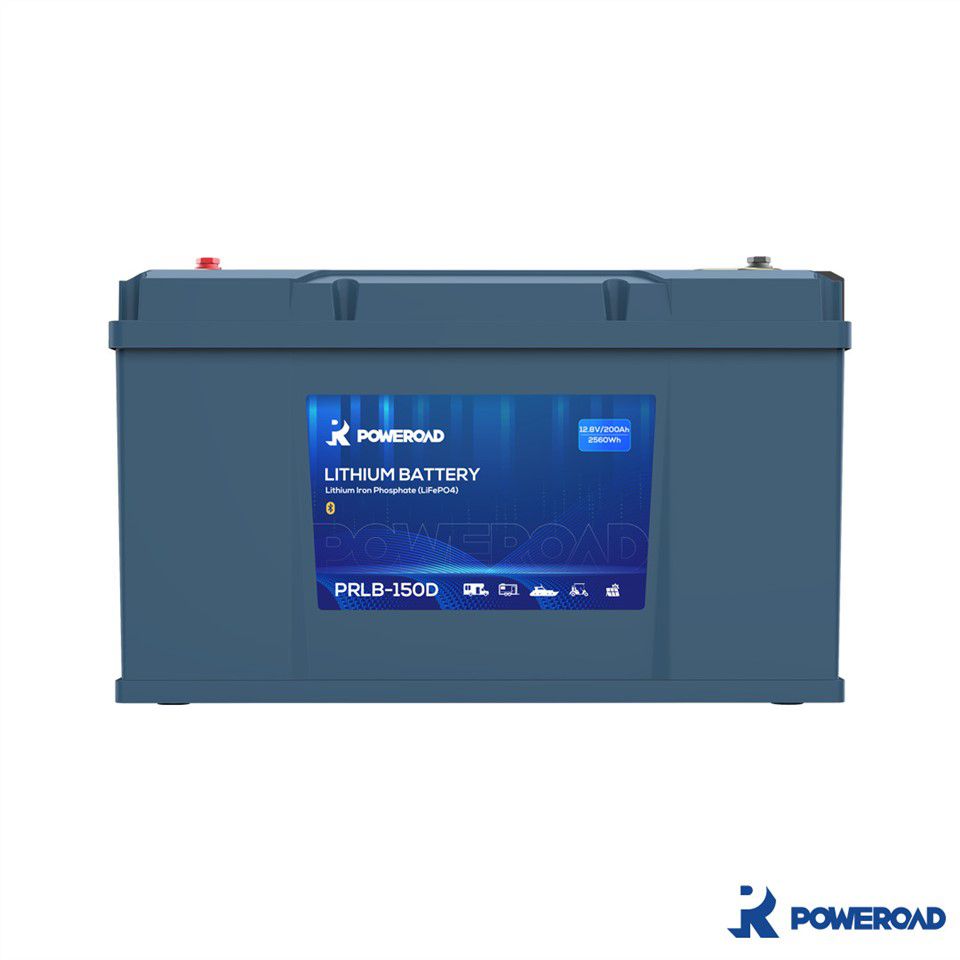

The POWEROAD PRLB-150D lithium-ion phosphate battery is designed to provide a sustained and smart energy delivery with Bluetooth features. The standard Din H8 enclosure design guarantees compact space management in the RVs or any other space-limited scenarios, giving the users a better range of room optimization.
The battery supports a configuration up to 6 packs wiring in parallel, allowing users to scale an energy system up to 11.5kWh capacity.
Our excellent enclosure design not only gives the battery IP66 rated protection, keeping the battery away from splashes and dirt, but also allows the users to unbox the battery for future maintenance or modifications. It works perfectly for most outdoor scenarios, such as RV off-grid systems, marine yacht mini-grid systems, and more.
| Model: PRLB-150D | |||
| MECHANICAL | ELECTRICAL SPECS | ||
| Dimensions (L x W x H)(MM) | ● 353x175x190 | Nominal Voltage | ● 12 V |
| Weight (Kg) | ● 25 | Nominal Capacity | ● 150 Ah |
| Terminal Type | ● M8 | Energy | ● 1920 Wh |
| Case Material | ● UL94-V0 Level Heat Resistance Case | Self Discharge | ● <3% per Month |
| ● With ABS & PC | Discharge Temperature (℃) | ● -20°C~ +55°C | |
| Enclosure Protection | ● IP66 | Charge Temperature (℃) | ● 0°C ~ +45°C |
| Cell Type – Chemistry | ● LiFePO4 | Series/Parallel | ● 6P |
| BCI Group | ● BCI Group 31 | Bluetooth | ● Bluetooth 4.0 |
| CHARGE & DISCHARGE | CERTIFICATIONS | ||
| Charge Voltage | ● 14.4 V | Certifications | ●DGM |
| Charge Current | ● Standard: 40 A | ●MSDS | |
| ● Maximum: 100 A | ●CE | ||
| Discharge Cut-off Voltage | ● 10 V | ●UN 38.3 | |
| Continuous Discharge Current | ● Standard: 60 A | Shipping Classification | ●UN 3480, CLASS 9 |
| ● Maximum: 200 A | |||
| Peak Discharge Current | ● 400 A @3s | ||
| Cycle Life | ● 4000 @ 80% DOD | ||
Key Features
Connected with Pure Copper Busbars:
We only use pure copper to connect the battery cells and the interiors, giving the best guarantee of resistance reduction and performance boosts.
Intelligent Warm up Feature:
When condition meets, close-fit heating module warms up the battery cells, secures the charges and the battery life. You only need to plug in the charge, and the battery handles the rest.
Built-in Bluetooth :
No need for external monitors to check the battery condition, Poweroad LINC EXTN series brings you an excellent lithium battery monitoring experience, integrates all the crucial information into the user interface, one glance, you will see all.
